ABS-FR0 custom electrical enclosure
Compact flame-retardant electrical enclosure manufactured using engineering-grade FDM 3D printing.
This small real-world project demonstrates how engineering-grade flame-retardant materials can be used for compact electrical enclosures manufactured with FDM 3D printing.
Unlike standard hobby-grade materials, ABS-FR0 is designed for technical applications where higher temperature resistance, improved durability, and better fire safety are important. This makes it a practical choice for custom electrical and industrial components produced in low volumes.
Quick technical summary
• Material: ABS-FR0.
• Application: electrical DIN rail enclosure.
• Flame-retardant engineering material.
• Brass inserts + screw assembly.
• FDM manufactured enclosure.
Key takeaway
- ABS-FR0 is suitable for electrical enclosures.
- Flame-retardant materials improve application safety.
- Engineering plastics provide better durability than PLA.
- FDM printing enables fast low-volume flame retardant enclosure manufacturing.

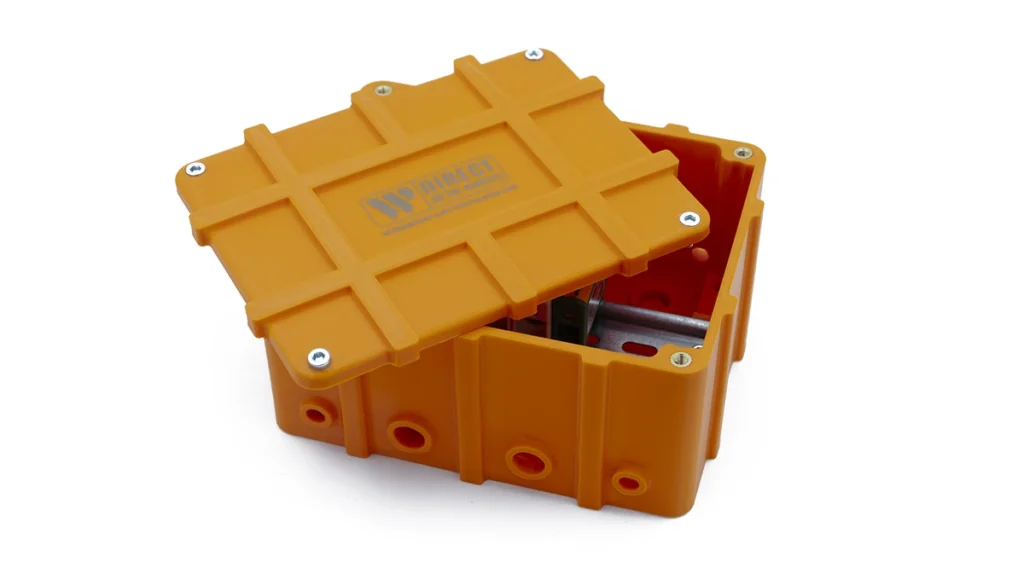

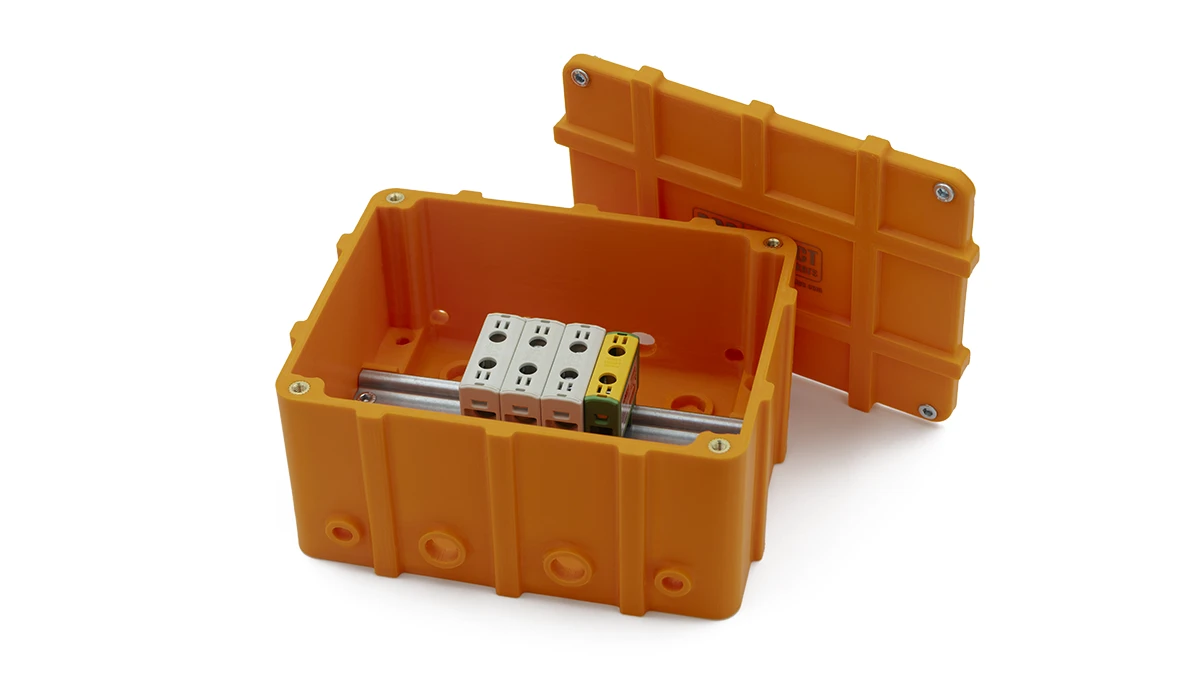

Compact flame retardant electrical enclosure manufactured using FDM 3D printing. The enclosure uses threaded brass inserts, screw assembly, and DIN rail mounting for compact electrical components. (WRYEDGE test project)
What makes ABS-FR0 suitable for electrical enclosures?
Unlike standard ABS materials, this material includes flame-retardant properties that improve application safety in electrical and industrial environments. Combined with good mechanical strength and temperature resistance, it becomes a practical material for low-volume custom enclosure manufacturing:
- • Better fire safety compared to standard ABS.
- • Improved durability compared to PLA.
- • Good dimensional stability.
- • Suitable for functional engineering components.
- • Easy to manufacture using FDM printing.
Why FDM printing works well for custom enclosures?
For small production runs and prototype applications, FDM manufacturing allows fast iteration and low tooling costs. Custom enclosures can be modified quickly without expensive injection molding tools, making this approach ideal for engineering development and specialized industrial projects.
3D printing settings used in this test
To keep the comparison fair, both samples were printed using the same slicer profile and identical print settings. The only intentional difference between the two samples was the drying process.
| Parameter | Value |
|---|---|
| Material | ABS-FR0 |
| Printing technology | Engineering-grade FDM |
| Nozzle temperature | 265–270°C |
| Bed temperature | 90°C |
| Print chamber temperature | Passive chamber |
| Flow ratio | 0.95 |
| Pressure advance | 0.02 |
| Max volumetric speed | 15 mm³/s |
| Cooling fan | 10–80% |
| Overhang cooling threshold | 25% |
| Auxiliary cooling fan | 0% |
| Exhaust fan during print | 70% |
| Application | Electrical enclosure |
| Assembly | Brass inserts + screws |
| Mounting system | DIN rail |
These settings were used for manufacturing the custom ABS-FR0 electrical enclosure shown in this real-world FDM project.
Manufacturing notes
The enclosure was manufactured using FDM 3D printing with threaded brass inserts for assembly durability. The DIN rail mounting system allows integration into compact electrical and industrial applications while maintaining low production cost and fast customization possibilities.
Conclusion
This small project demonstrates how engineering-grade flame-retardant materials can be successfully used for practical electrical components manufactured with FDM 3D printing. Even compact functional parts can benefit from technical materials that offer improved durability, safety, and long-term reliability.
